Ignition Transformers 15930020

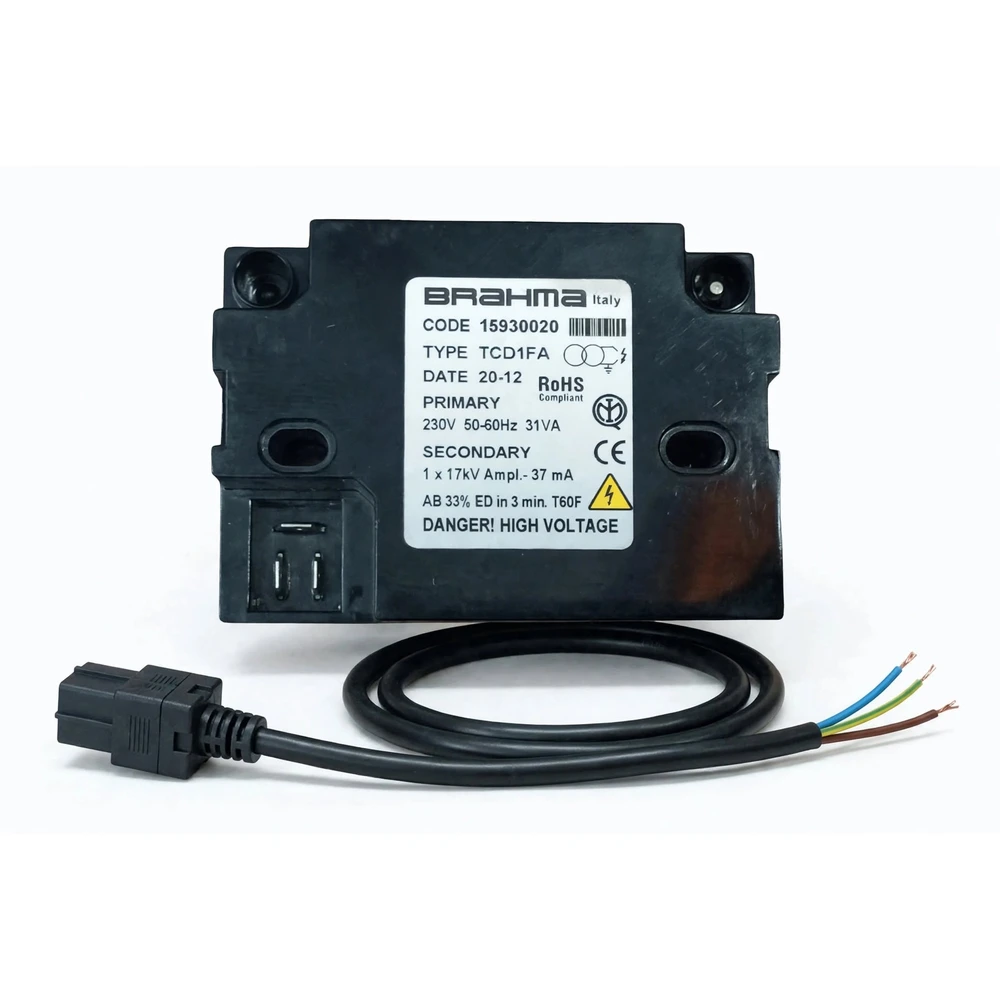

Brahma Ignition Transformer TCD1FA

The Brahma TCD1FA is a compact, single-pole electronic ignition transformer that steps up a 230V mains supply to a 17kV high-voltage secondary output (6kV rated/37mA) for firing the spark electrode on gas forced-draught and oil burners. Built around a high-frequency oscillator and ferrite-core transformer with a built-in EMC filter, it runs a 33% duty cycle (3-minute cycle, T60F) and is supplied with a fast-on power connector. Manufactured by Brahma, Italy, it is RoHS compliant, CE marked and IMQ-approved to EN 61558-1/EN 61558-2-3 for industrial burner and boiler ignition applications.
